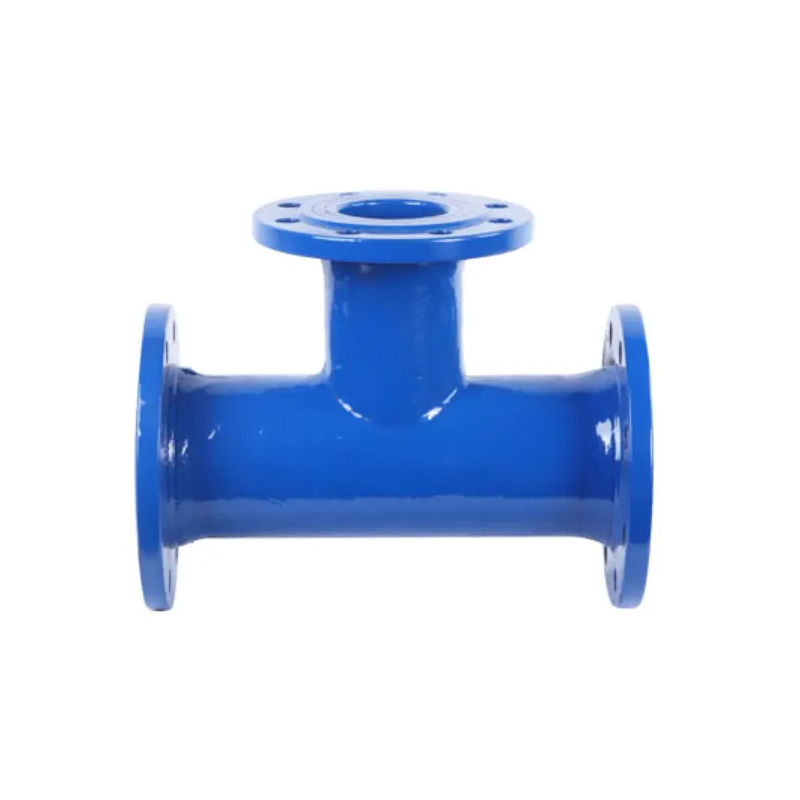

Ductile Iron Tee Elbow Flanged Pipe Fittings For Water Or Sewerage Pipeline Projects

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Phone : +86 13406973786

Email : inquiry@bystainless.com

Wechat : +86 13406973786

Whatsapp : +86 13406973786



Product Description

Dimensions of Ductile Iron Tee Elbow Flanged Pipe Fittings For Water Or Sewerage Pipeline Projects

DN	dn	L	H	unit weight kg		standard
DN	dn	L	H	PN10	PN16	standard	PN25	PN40
40	40	255	130	8.4	8.4	8.4	8.4	EN545 B
40	40	280	140	8.5	8.5	8.5	8.5	EN545 A
50	50	280	140	10.3.	10.3.	10.3.	10.3.	EN545 B
50	50	300	150	10.4	10.4	10.4	10.4	EN545 A
60	60	300	150	11.5	11.5	11.2	11.2	EN545 B
60	60	320	160	11.8	11.8	11.5	11.5	EN545 A
65	50	330	165	13	13	12.7	12.7	EN545
65	65	330	165	13.3	13.3	13	13	EN545 A
80	40	330	165	13.7	13.7	13.7	13.7	EN545
80	50	310	145	13.9	13.9	13.9	13.9	EN545
80	50	330	160	14.3	14.3	14.3	14.3	EN545
80	60	310	155	14.1	14.1	14.1	14.1	EN545 B
80	60	330	160	15	15	15	15	EN545
80	65	330	160	15.5	15.5	15.5	15.5	EN545
80	80	280	140	14.6	14.6	14.6	14.6	EN545
80	80	330	165	15.6	15.6	15.6	15.6	EN545 A/B
100	50	320	165	16.2	16.2	17.2	17.2	EN545
100	50	360	170	17	17	18	18	EN545
100	60	320	165	16.3	16.3	16.8	16.8	EN545 B
100	60	360	165	17.7	17.7	18.7	18.7	EN545
100	65	360	165	18	18	19	19	EN545
100	80	330	170	17.5	17.5	18.6	18.6	EN545 B
100	80	360	175	18.4	18.4	19.5	19.5	EN545 A
100	100	310	155	17.6	17.6	18.7	18.7	EN545
100	100	360	180	19.4	19.4	21	21	EN545 A/B
125	50	400	180	21.7	21.7	22.9	25.5	EN545
125	60	330	180	19.7	19.7	20.9	23.5	EN545 B
125	60	400	180	22	22	23.2	25.8	EN545
125	80	350	185	21	21	22.2	24.8	EN545 B
125	80	400	190	23	23	24.5	27	EN545 A
125	100	370	195	22.5	22.5	24.2	27.1	EN545 B
125	100	400	195	24	24	26	28.5	EN545 A
125	125	400	200	25.5	25.5	27.5	31.5	EN545 A/B
150	50	335	175	23.5	23.5	25.5	29.6	EN545
150	50	440	200	26	26	28	32.1	EN545
150	60	340	190	23.7	23.7	25.7	29.8	EN545 B
150	60	440	195	27.5	27.5	29.5	33.6	EN545
150	65	440	195	27.9	27.9	29.9	34	EN545
150	80	360	200	24.7	24.7	26.7	30.9	EN545 B
150	80	440	205	28.5	28.5	31	36	EN545 A
150	100	380	205	26.6	26.6	29.6	33.6	EN545 B
150	100	440	210	29.5	29.5	32	36.5	EN545 A
150	125	410	215	29	29	31.5	36	EN545 B
150	150	390	195	30	30	33	39	EN545
150	150	440	220	32.5	32.5	36	42	EN545 A/B
200	50	520	220	40.5	40			EN545
200	60	365	215	32.8	32.4			EN545 B
200	60	520	220	40.7	40.2			EN545
200	65	520	220	41	40.5			EN545
200	80	380	225	34.2	33.8			EN545 B
200	80	520	235	42	41.5			EN545 A
200	100	400	230	35.9	35.5			EN545 B
200	100	520	240	42.9	42.5			EN545 A
200	125	520	240	52.4	52			EN545
200	150	460	245	41.5	41.1			EN545 B
200	150	520	250	46	45.5			EN545 A
200	200	460	230	44.6	44			EN545
200	200	520	260	49.5	49			EN545 A/B
250	60	385	260	45	44.2			EN545 B
250	80	405	265	47	46.2			EN545 B
250	80	700	265	65.8	65			EN545
250	100	425	270	48.9	48.1			EN545 B
250	100	700	275	68	67			EN545 A
250	150	485	280	55.1	54.3			EN545 B
250	150	700	300	71	70			EN545
250	200	540	290	61.8	60.8			EN545 B
250	200	700	325	76	75			EN545 A
250	250	600	300	70.3	69.1			EN545 B
250	250	700	350	82	81			EN545 A
300	80	425	295	61.4	60.6			EN545 B
300	80	800	290	91.6	91			EN545
300	100	450	300	64	63.2			EN545 B
300	100	800	300	94	93			EN545 A
300	150	505	310	70.8	70			EN545 B
300	150	800	325	96.5	95.5			EN545
300	200	565	320	78.5	77.5			EN545 B
300	200	800	350	102	101			EN545 A
300	250	620	330	87.3	86.1			EN545 B
300	250	800	375	109.2	108			EN545
300	300	680	340	97.8	96.6			EN545 B
300	300	800	400	118	117			EN545 A
350	80	445	325	73.3	79.5			EN545 B
350	80	850	325	113.8	120			EN545
350	100	470	330	76.2	82.4			EN545 B
350	100	850	325	116	122			EN545 A
350	150	530	340	84.3	90.5			EN545 B
350	150	850	325	117	123			EN545
350	200	585	350	92.4	98.4			EN545 B
350	200	850	325	122	128			EN545 A
350	250	645	360	102.5	108.3			EN545 B
350	250	850	325	126.2	132			EN545
350	300	700	365	112.6	118.7			EN545
350	300	850	425	139	144			EN545
350	350	760	380	123.2	132.5			EN545 B
350	350	850	425	144	153			EN545 A
400	80	470	355	88.5	99.7			EN545 B
400	80	900	350	141	152			EN545
400	100	490	360	91.4	102.6			EN545 B
400	100	900	350	143	154			EN545 A
400	150	550	370	100.4	111.6			EN545 B
400	150	900	350	144	155			EN545
400	200	610	380	110	121			EN545 B
400	200	900	350	148	159			EN545 A
400	250	665	390	127	131.3			EN545 B
400	250	900	350	150.2	161			EN545
400	300	725	400	132.6	143.4			EN545 B
400	300	900	450	166.2	177			EN545
400	350	775	405	141.9	156.2			EN545
400	350	900	450	170.7	185			EN545
400	400	840	420	155.3	172.1			EN545 B
400	400	900	450	177.2	194			EN545 A
450	80	460	375	102.8	120			EN545
450	80	950	375	169.8	187			EN545
450	100	515	390	110.5	127.7			EN545 B
450	100	950	375	170.8	188			EN545 A
450	150	570	400	120.1	137.3			EN545 B
450	150	950	375	172.8	190			EN545
450	200	630	410	130.7	147.7			EN545 B
450	200	950	375	176	193			EN545 A
450	250	690	420	142.8	159.6			EN545 B
450	250	950	375	180.2	197			EN545
450	300	745	430	155.3	172.1			EN545 B
450	300	950	475	193.2	210			EN545
450	350	795	435	162.9	185.6			EN545
450	350	950	475	201	221			EN545
450	400	860	450	179.6	202.4			EN545 B
450	400	950	475	206.2	229			EN545
450	450	920	460	194.9	220.7			EN545 B
450	450	950	475	211.2	237			EN545 A
500	80	500	405	124.5	154.9			EN545
500	80	1000	400	206.6	237			EN545
500	100	535	420	130.4	160.8			EN545 B
500	100	1000	400	210.6	241			EN545 A
500	150	585	425	140.3	170.7			EN545
500	150	1000	400	212.6	243			EN545
500	200	650	440	152.7	182.9			EN545 B
500	200	1000	400	215	245			EN545 A
500	250	700	445	164.6	194.6			EN545
500	250	1000	400	216	246			EN545
500	300	765	455	179.3	209.3			EN545
500	300	1000	500	228	258			EN545
500	350	1000	500	240.5	274			EN545
500	400	885	480	206.7	242.7			EN545 B
500	400	1000	500	248	284			EN545 A
500	450	1000	500	251	290			EN545
500	500	1000	500	258.4	304			EN545 A/B
600	1100	450	296	349	EN545
600	100	580	475	183.3	236.3			EN545
600	100	1100	450	297	350			EN545
600	150	635	485	196.4	249.4			EN545
600	150	1100	450	299	352			EN545
600	200	700	500	211.9	264.7			EN545 B
600	200	1100	450	305.2	358			EN545 A
600	250	750	505	225.7	278.3			EN545
600	250	1100	450	307.4	360			EN545
600	300	810	515	242.2	294.8			EN545
600	300	1100	550	316.4	369			EN545
600	350	865	525	256.4	312.5			EN545
600	350	1100	550	320	376			EN545
600	400	930	540	274.4	333			EN545 B
600	400	1100	550	342.4	401			EN545 A
600	450	1045	545	302.2	363.8			EN545
600	450	1100	550	342.4	404			EN545
600	500	1100	550	339.8	408			EN545
600	600	1100	550	355	447			EN545 A
600	600	1165	580	385.7	465.2			EN545 B
700	80	600	390	247.3	262.4			EN545
700	100	540	510	253	295			EN545
700	100	600	395	266.8	281.2			EN545
700	150	595	515	255	296			EN545
700	150	600	525	256.5	297.5			EN545
700	200	650	525	258	298			EN545 A
700	250	720	530	290.8	320.6			EN545
700	300	760	540	319	342			EN545
700	300	780	530	329	352			EN545
700	350	830	555	339	362			EN545
700	400	870	555	343	379			EN545 A
700	450	920	560	359	398			EN545
700	500	980	670	442	481			EN545
700	500	990	560	427	466			EN545
700	600	1200	685	476	523			EN545
700	600	1200	590	456	503			EN545
700	700	650	525	258	298			EN545
700	700	870	555	343	379			EN545
700	700	1200	600	477	523			EN545 A
800	100	580	570	345	383			EN545
800	150	585	575	349	387			EN545
800	200	690	585	352	390			EN545
800	300	800	600	413	443			EN545
800	400	910	615	441	484			EN545 A
800	500	1020	630	561	599			EN545
800	600	1350	645	613	678			EN545
800	700	1350	660	663	711			EN545
800	800	690	585	352	390			EN545
800	800	910	615	441	484			EN545
800	800	1350	645	613	678			EN545
800	800	1350	675	657	715			EN545
900	100	620	630	428	476			EN545
900	150	675	635	432	480			EN545
900	200	730	645	436	484			EN545
900	300	840	660	523	569			EN545
900	400	950	675	541	594			EN545
900	500	1060	690	726	784			EN545
900	600	1500	705	787	860			EN545
900	700	1500	720	843	901			EN545
900	800	1560	735	860	913			EN545
900	900	730	645	436	484			EN545
900	900	950	675	541	594			EN545
900	900	1500	705	787	860			EN545
900	900	1500	750	853	924			EN545

1000	100	660	690	524	572	EN545
1000	150	715	695	534	582	EN545
1000	200	770	705	546	629	EN545
1000	300	880	720	651	739	EN545
1000	400	990	735	668	755	EN545
1000	500	1100	750	955	1007	EN545
1000	600	1650	765	1007	1116	EN545
1000	700	1650	780	1067	1152	EN545
1000	800	1650	795	1085	1168	EN545
1000	900	1650	810	1095	1219	EN545
1000	1000	770	705	546	629	EN545
1000	1000	990	735	668	755	EN545
1000	1000	1650	765	1007	1116	EN545
1000	1000	1650	825	1105	1229	EN545
1100	400	1030	795	839	913	EN545
1100	400	980	795	811	885	EN545
1100	600	1250	825	990	1083	EN545
1100	600	1210	825	968	1061	EN545
1100	800	1470	855	1160	1245	EN545
1100	1000	1690	885	1345	1450	EN545
1100	1100	1800	900	1450	1555	EN545
1200	100	660	810	996	1082	EN545
1200	150	715	815	998	1084	EN545
1200	200	775	825	1000	1086	EN545
1200	300	890	840	1004	1160	EN545
1200	400	1010	855	1008	1122	EN545
1200	500	1125	870	1095	1250	EN545
1200	600	1240	885	1101	1256	EN545
1200	700	1355	900	1279	1426	EN545
1200	800	1470	915	1291	1439	EN545
1200	900	1585	930	1427	1662	EN545
1200	1000	1700	945	1494	1664	EN545
1200	1200	1240	885	1101	1256	EN545
1200	1200	1470	915	1291	1439	EN545
1200	1200	1700	945	1494	1664	EN545
1200	1200	1935	975	1806	1970	EN545
1400	100	970	905	1227	1363	EN545
1400	200	1085	920	1231	1367	EN545
1400	400	1315	950	1514	1656	EN545
1400	600	1550	980	1555	1818	EN545
1400	800	1780	1010	1886	2041	EN545
1400	800	1760	1010	1874	2029	EN545
1400	1000	2015	1040	2131	2609	EN545
1400	1200	2245	1070	2262	2431	EN545
1400	1400	1550	980	1555	1818	EN545
1400	1400	1760	1010	1886	2041	EN545
1400	1400	2015	1040	2131	2309	EN545
1400	1400	2480	1100	2545	2715	EN545
1500	600	1575	1035	1959	2143	EN545
1500	1000	2040	1095	2482	2682	EN545
1600	100	1020	1015	1874	2078	EN545
1600	200	1135	1030	7880	2084	EN545
1600	400	1370	1060	2000	2210	EN545
1600	600	1600	1090	2167	2398	EN545
1600	800	1835	1120	2452	2675	EN545
1600	1000	2063	1150	2740	2986	EN545
1600	1200	2300	1180	3058	3327	EN545
1600	1400	2535	1210	3208	3444	EN545
1600	1600	1600	1090	2167	2398	EN545
1600	1600	1835	1120	2452	2675	EN545
1600	1600	2065	1150	2740	2986	EN545
1600	1600	2300	1180	3058	3327	EN545
1600	1600	2765	1240	3586	3854	EN545
1800	100	1075	1125	2348	2600	EN545
1800	200	1190	1140	2350	2602	EN545
1800	400	1420	1170	2574	2835	EN545
1800	600	1655	1200	2694	2972	EN545
1800	800	1885	1230	3023	3299	EN545
1800	1000	2120	1260	3375	3669	EN545
1800	1200	2355	1290	3740	4056	EN545
1800	1200	2350	1290	3734	4050	EN545
1800	1400	2585	1320	3910	4190	EN545
1800	1600	2820	1350	4328	4641	EN545
1800	1800	1655	1200	2694	2972	EN545
1800	1800	1885	1230	3023	3299	EN545
1800	1800	2120	1260	3375	3669	EN545
1800	1800	2350	1290	3740	4056	EN545
1800	1800	3050	1380	4750	5086	EN545

2000	200	1235	1250	2840	3146	EN545
2000	400	1470	1280	3002	3314	EN545
2000	600	1705	1310	3309	3642	EN545
2000	800	1935	1340	3505	3796	EN545
2000	1000	2170	1370	4112	4459	EN545
2000	1200	2400	1400	4314	4644	EN545
2000	1400	2635	1430	4966	5340	EN545
2000	1600	2865	1460	5202	5567	EN545
2000	1800	3100	1490	5668	6055	EN545
2000	2000	1705	1310	3309	3642	EN545
2000	2000	2170	1370	4112	4459	EN545
2000	2000	2635	1430	4966	5340	EN545
2000	2000	3330	1520	6185	6599	EN545
2200	600	1560	1420	3675	4034	EN545
2200	800	1780	1450	4298	4654	EN545
2200	1000	2000	1480	4753	5128	EN545
2200	1200	2220	1510	5026	5413	EN545
2200	1400	2440	1540	5709	6106	EN545
2200	1600	2660	1570	6234	6664	EN545
2200	1800	2880	1600	6474	6934	EN545
2200	2000	3100	1630	7316	7795	EN545
2200	2200	3320	1660	7954	8464	EN545
2400	600	1620	1530	4418	4849	EN545
2400	800	1840	1560	5200	5671	EN545
2400	1000	2060	1590	5721	6211	EN545
2400	1200	2280	1620	5963	6432	EN545
2400	1400	2500	1650	6804	7317	EN545
2400	1600	2720	1680	7392	7937	EN545
2400	1800	2940	1710	7614	8145	EN545
2400	2000	3160	1740	8591	9185	EN545
2400	2200	3380	1770	9275	9901	EN545
2400	2400	3600	1800	10031	10715	EN545
2600	600	1680	1640	5214	5711	EN545
2600	800	1900	1670	6076	6596	EN545
2600	1000	2120	1700	6673	7213	EN545
2600	1200	2340	1730	7289	7850	EN545
2600	1400	2560	1760	7585	8123	EN545
2600	1600	2780	1790	8564	9159	EN545
2600	1800	3000	1820	9213	9831	EN545
2600	2000	3220	1850	9505	10128	EN545
2600	2200	3440	1880	10647	11323	EN545
2600	2400	3660	1910	11455	12188	EN545
2600	2600	3880	1940	12230	12988	EN545

Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C， excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Application: Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.



FAQ

Q: Why choose us?

A: Our company have been in steel business for more than ten years, we are internationally experienced,professional, and we can provide variety of steel products with high quality to our clients.

Q: How is your Payment Term?

A:One is 30% deposit by TT before production and 70% balance against copy of B/L;

Q: Can we visit your factory?

A:Warmly welcome. Once we have your schedule, we will arrange the professional sales team to accompany your visit.

Q: Can you provide sample?

A: Yes, We can provide the samll samples in stock, but the sample will be charged, and the charge will be refunded if you place an order.

Q: How about your price?

A: Our prices are very favorable and competitive.Customer from all over the world to purchase our products.

Q: How long is your delivery time?

A: Generally it is 15-30 work days if the goods are not in stock, it is according to quantity.

Q:Could you special design and produce for us?
A: Sure, we have all kinds of professional engineers,Could design and produce special product according to customer requested.Such as: special Size, special control, or OEM, etc.



Message



Products Recommended



+86 13406973786



inquiry@bystainless.com



+86 13406973786


