  • ISO2531 EN545 EN598 Ductile Iron Fitting Tyton push-on All Socket Tee
  • ISO2531 EN545 EN598 Ductile Iron Fitting Tyton push-on All Socket Tee
  • ISO2531 EN545 EN598 Ductile Iron Fitting Tyton push-on All Socket Tee

›

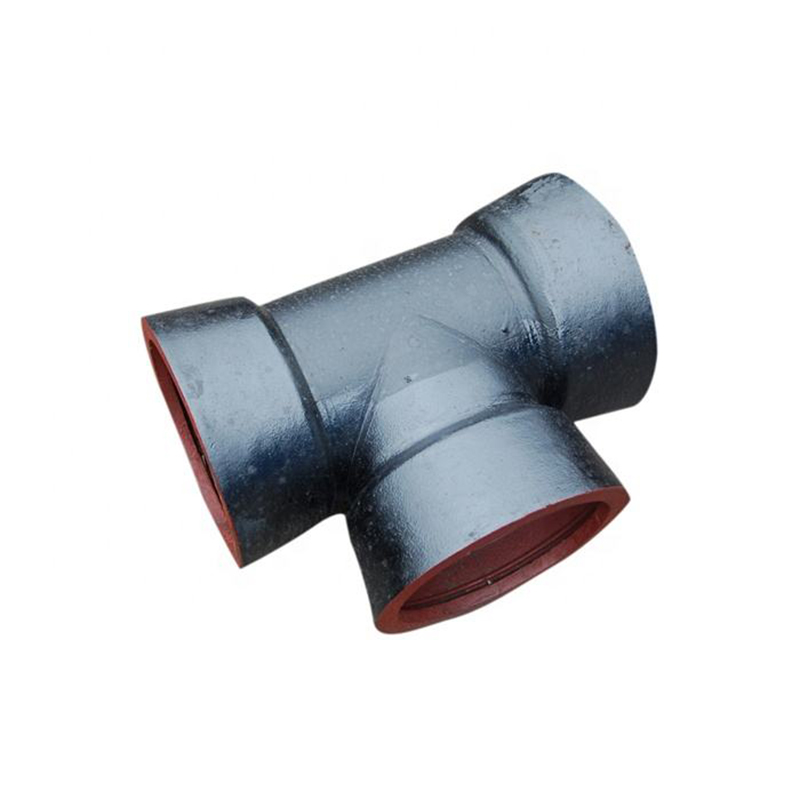

ISO2531 EN545 EN598 Ductile Iron Fitting Tyton push-on All Socket Tee
Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges
Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295
Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.
Fluid Temperature: 0°C-50°C，excluding frost.
Pipe ends: Spigot, socket or flanges.
Phone : +86 13406973786
Email : inquiry@bystainless.com
Wechat : +86 13406973786
Whatsapp : +86 13406973786
Contact Us
Email

Product Description

Dimensions of ISO2531 EN545 EN598 Ductile Iron Fitting Tyton push-on All Socket Tee

  DN  dn  L  H  Mass (kg)
  80  80  170  85  12.4
  100  100  190  95  16.1
  125  100  195  110  20.5
  150  80  170  120  21.5
  150  100  195  120  23.5
  150  150  255  125  28
  200  80  175  145  30
  200  100  200  145  32
  200  150  255  150  37
  200  200  315  155  43
  250  80  180  170  35.5
  300  80  220  235  54.5
  300  100  205  195  49
  300  300  435  220  70.3



Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C， excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material:Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.






FAQ

Q: Why choose us?

A: Our company have been in steel business for more than ten years, we are internationally experienced,professional, and we can provide variety of steel products with high quality to our clients.



Q: How is your Payment Term?

A:One is 30% deposit by TT before production and 70% balance against copy of B/L;



Q: Can we visit your factory?

A:Warmly welcome. Once we have your schedule, we will arrange the professional sales team to accompany your visit.



Q: Can you provide sample?

A: Yes, We can provide the samll samples in stock, but the sample will be charged, and  the charge will be refunded if you place an order.



Q: How about your price?

A: Our prices are very favorable and competitive.Customer from all over the world to purchase our products.



Q: How long is your delivery time?

A: Generally it is 15-30 work days if the goods are not in stock, it is according to quantity.



Q:Could you special design and produce for us?
A: Sure, we have all kinds of professional engineers,Could design and produce special product according to customer requested.Such as: special Size, special control, or OEM, etc.
